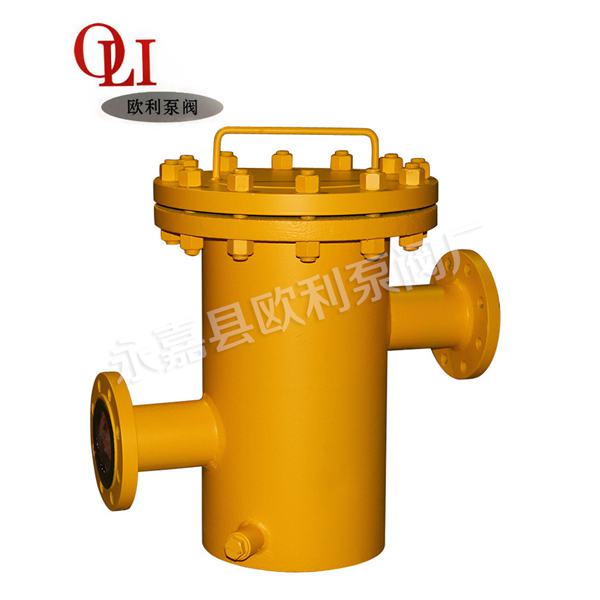

                Ammonia with the tube type filter

				Dateline:2014-11-30    Hits:


                A, use and performance specification
                The valve with high sealing filter screen, filter out impurities and particles on thepipeline fluid medium, to prevent impurities cause damage to the equipment, mainly used for compressor (pump) before and other equipment before, play a role of protection equipment.
                Nominal pressure test pressure PN strength of Mpa air seal test pressure Mpa low pressure seal test (Mpa) applicable medium
                2.5 3.75 2.75 -40 ~ +80 C
                One, main H41N dimensions and connection dimensions:
                DN L D D1 D2 D6 B F Z-D H
                25160115856558162 4-*14 150
                321901351007566182 4-*18 160
                402001451108576183 4-*18 175
                502301601251008820 4-*18 185
                652901801451201102 3 8-*18 200
                803101951601351212 3 8-*18 220
                100350135190160150 243 8-*23 248
                125400270220188176 283 8-*25 380
                150480300250218204 303 8-*25 420
                200600375310278260 343 12-*25 530
                250650445385345313 423 12-*34 610
                300750510450408364 464 16-*34 725
                Three, the main H42N dimensions and connection dimensions:
                DN L D D1 D2 B F Z-D
                50140160125100203 4-*18
                65160180145120223 8-*18
                80185195160135223 8-*18
                100210135190160243 8-*23
                125250270220188283 8-*25
                150300300250218303 8-*25
                200380375310278343 12-*25
                Description of the operation principle and structure
                1, when the fluid along the direction of the arrow through the valve, because the valve flap fluid differential pressure rises, so that fluid smoothly through the valve
                2, when the fluid backflow, due to self weight and fluid valve differential pressure, so that the valve clack down and sealed with sealing surface to prevent fluid backflow.
                3, the valve is fully closed structure, no dynamic seal, never leakage.
                Four, the material of main parts:
                Parts name material
                The valve body valve cover of carbon steels WCB
                The valve sealing surface of 25# nylon 1010
                Flange bolt 35CrMoA
                The flange nut 35#
