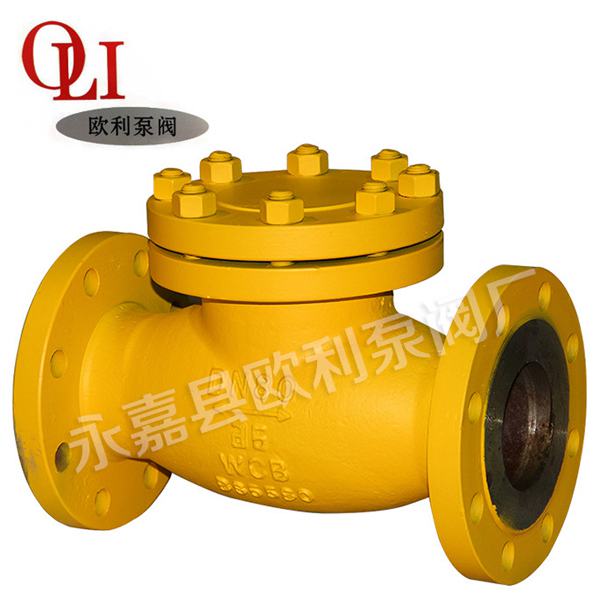

                Ammonia with the swing check valve

				Dateline:2014-11-30    Hits:


                - stable quality: the implementation of quality control, the whole process of nuanced,omnidirectional detection!
                Reasonable price: high efficiency, internal cost control, reduce the expenditure, to help customers!
                - quick delivery: advanced production lines, ample supply, shorten the time of delivery!
                Pipeline various conditions - H44B PN16~PN250 swing steel check valve is applicable to pressure 1.6~25MPa working temperature of -29~+550 DEG C petroleum,chemical, pharmaceutical, chemical fertilizer, the electric power industry and so on, for medium is water, oil, steam, acid medium.
                [features]
                H44B, swing steel check valve is generated by the pipeline flow of the medium itselfforce automatically turned on and off, is an automatic valve. Check valve for pipeline system, its main role is to prevent the media back, to prevent the pump and drive motor machine inversion, and the container medium discharge. Check valve can also be used for the pipe to the pressure may rise to more than one main system pressureauxiliary system supplies the.
                Model H44H-16C~250 H44W-16P~250
                The working pressure (MPa) 1.6~25
                Applicable temperature (c) = 425 = 550
                Applicable medium of water, steam, oil and weak corrosive medium
                Material of valve body, valve cover, valve carbon chromium nickel titanium and stainless steel
                Sealing surface of carbon steel surfacing iron-based alloy body seal
                The performance parameters of []
                Main external and connecting dimensions
                Nominal diameter of DN main dimensions and connection dimensions
                L D D1 D2 B Z-d H
                H44B-16C
                25160115856516 4-14 100
                321801351007816 4-18 105
                402001451008516 4-18 115
                5023016012510016 4-18 135
                6529018014512018 4-18 142
                8031019516013520 8-18 165
                10035021518015520 8-18 180
                12540024521018522 8-18 210
                15048028024021024 8-23 233
                20050033529526526 12-23 304
                25055040535532030 12-25 348
                30065046041037530 12-25 390
                35075052047043534 16-25 430
                40085058052548536 16-30 468
                H44B-25
                25160115856516 4-14 100
                321801351007816 4-18 105
                402001451108516 4-18 115
                5023016012510020 4-18 160
                6529018014512022 8-18 175
                8031019516013522 8-18 185
                10035023019016024 8-23 220
                12540027022018828 8-25 248
                15048030025021830 8-25 276
                20055036031027834 12-25 350
                25065042537033236 12-30 410
                30075048543039040 16-30 430
                35085055049044844 16-34 518
                40095061055050548 16-34 560
