                Your position:Home>Valve>Ammonia ball valve
                PRODUCTS

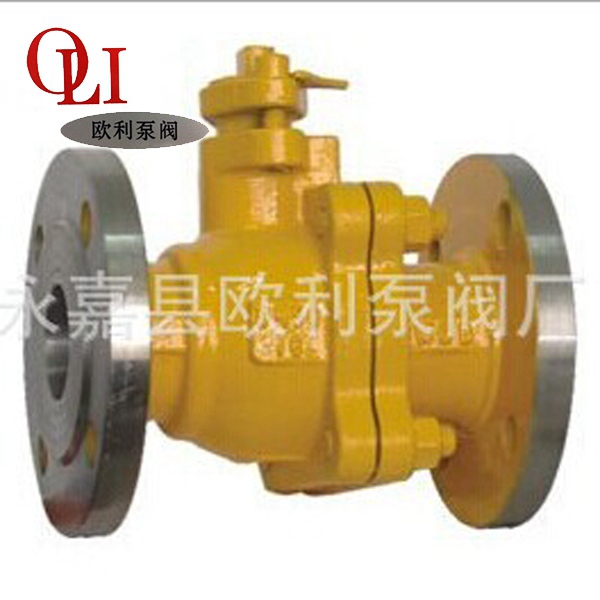

                Ammonia ball valve

				Dateline:2014-11-30    Hits:


                A, use and performance specification
                Q41 type ball valve is suitable for the small caliber pipeline, all kinds of pressure,temperature and medium to connect or disconnect the line media control the opening and closing device; by medium pressure will be pressed in the seat on the ball outlet,the use of pressure and diameter are subject to certain restrictions. Adopt 90 DEGtransmission, so the switch is convenient and rapid, can carry out fast opening and closing
                Two, the operating principle and structure
                1, ball valve channel is smooth and easy to sweep line pipe cleaning, can deliver the slurry and solid particle medium
                2, using PTFE (Teflon) materials such as sealing, with good lubrication and elasticity,and the sphere of friction coefficient of small, long service life
                3, rapid opening and closing, opening and closing when the ball is rotated 90 degrees, convenient and quick
                4 ball valve fluid resistance small, open channel, the channel of the valve body andball connecting pipeline section area and equal, a straight line figured, medium flow through the valve, the equivalent through a section of straight pipe, valve in various types of valves in the fluid of least resistance
                5, configured with manual, worm gear drive, pneumatic, electric (explosion-proof) can realize the remote automatic control, can meet a variety of conditions of the user's request
                Product performance specification Products Perfomance specification pressure levels normal test pressure (Mpa)
                Low pressure seal housing seal
                Nominal pressure (LB) 1503 2.2 0.6
                3007.5 5.5 0.6
                Application of the temperature of -40~+80 DEG C
                Applicable medium ammonia, liquid ammonia, natural gas, liquefied petroleum gas,etc.
                Two, the material of main parts: part name material
                The valve body valve cover of carbon steels WCB
                The ball body of stainless steel 304SS
                Sealing ring PTFE (Teflon) - polytetrafluoroethylene
                Valve rod chromium stainless steel Cr13
                Stem packing PTFE
                The flange nut / bolt 35#
                Four, the main dimensions and connection dimensions: DN L D D1 D2 D6 B F Z-D H
                25150115856558162 4-*14 150
                321651351007566182 4-*18 160
                401801451108576183 4-*18 175
                502001601251008820 4-*18 185
                652201801451201102 3 8-*18 200
                802501951601351212 3 8-*18 220
                100320135190160150 243 8-*23 248
                125400270220188176 283 8-*25 380
                150400300250218204 303 8-*25 420
                200600375310278260 343 12-*25 530
