                Your position:Home>Valve>Welding ball valve
                PRODUCTS

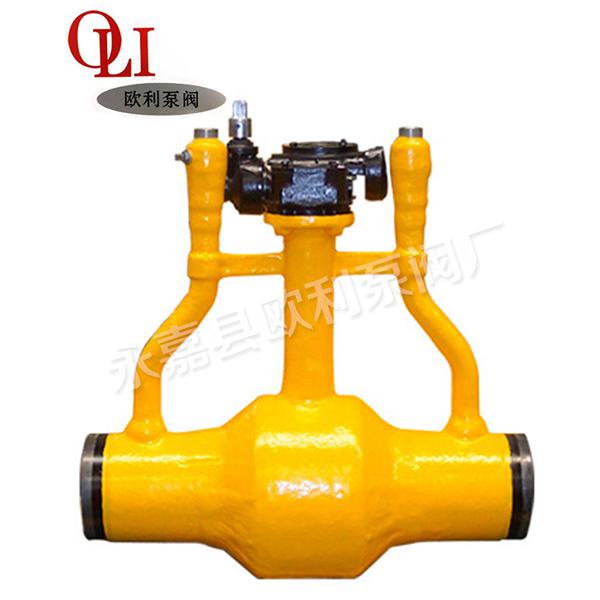

                Welding ball valve

				Dateline:2014-11-30    Hits:


                Platform design uses the ISO5211 standard, without connecting bracket and the shaft sleeve, so that the actuator installation easier
                A valve stem, leak proof design
                1, with blowout proof stem design
                2, the first stage seal, tapered stem sealing pad effectively prevent leakage of medium in the valve stem rotation process, and in abnormal pressure condition, also can prevent the leakage effectively
                3, the second stage seal, a group of V type combined filler after being compressed to the two sides to expand, thereby preventing leakage
                4 preload, the release of the dish shaped spring, abrasion of the sealing pad automatic compensation and the valve stem packing
                5, the use of sealing system of stem nut pressing all stem, prevent leakage
                6, the stopping pad fixed stem nut, preventing its release
                Two, a manual locking design
                Switch lock risk prevent accidental mistaken operation maintain valve position existing when necessary. Valve platform and handle with a lock, used padlock the valve in the closed position or the opening and locking
                A, use and performance
                Working temperature models of nominal pressure test pressure (c) applicable medium
                Strength (water) Mpa (water) sealed air (Mpa) low pressure seal (air) Mpa
                Q41F-16C 1.6 2.4 1.8 0.6 = 150 nitrate - acid
                Q41F-25C 2.5 3.8 2.8 0.6 = 150 nitrate - acid
                Q41F-40C 4 6 4.4 0.6 = 150 nitrate - acid
                Two, the material of main parts:
                Part name materials
                Q41F-16C-25C-40C Q41F-16R-25P-40R
                Chromium nickel molybdenum titanium valve WCB/304
                Sphere
                The valve stem
                Three, the main dimensions and connection dimensions:
                Types of nominal diameter DN size (mm)
                L D D1 D2 H B-F D Do with Z-
                Q41F-16C 1513095654560 14-2 4-14 108
                20140105755564 14-2 4-14 120
                25150115856590 16-2 4-14 165
                3216513510078105 16-2 4-18 180
                4018014511085150 16-3 4-18 240
                50200160125100190 16-3 4-18 240
                65220180145120195 18-3 4-18 320
                80250195160135215 20-3 8-18 350
                100280215180155250 20-3 8-18 400
                125320245210185280 22-3 8-18 500
                150360280240210320 24-3 8-23 600
                200400335295265370 26-3 12-23 800
                Q41F-25C 4018014511085160 16-3 4-18 240
                50200160125100205 20-3 4-18 270
                65220180145120215 22-3 8-18 350
                80250195160135230 22-3 8-18 400
                100280230190160270 24-3 8-23 500
                125320270220188300 28-3 8-25 600
                150360300250218340 30-3 8-25 900
                200400360310278400 34-3 12-25 1100
                Q41F-40C 1513095654560 16-2 4-14 40
                20140105755565 16-2 4-14 51
                25150115856590 18-2 4-14 58
                3218013510078105 18-3 4-18 66
                4020014511085170 18-3 4-18 76
                50220160125100230 20-3 4-18 88
                65250180145120250 22-3 8-18 110
                80280195160135250 22-3 8-18 121
                100320230190160295 24-3 8-23 150
                125400270220188330 28-3 8-25 176
                150400300250218375 30-3 8-25 204
                200550375320282440 38-3 12-30 260
